How to Choose Compatible Wiring Harnesses from Donor Cars

Understanding Wiring Harness Compatibility

Choosing compatible wiring harnesses from donor cars is a critical skill for anyone involved in automotive restoration, engine swaps, or custom builds. The process requires careful attention to detail, as electrical mismatches can lead to costly damage or system failures. When sourcing from junkyards near me, understanding compatibility factors becomes even more crucial for success.

The primary challenge lies in ensuring matching connectors and pinouts to avoid electronic mismatches. While the physical connector might appear identical, the underlying electrical logic—the pinouts—must align perfectly between the donor and target systems.

Key Benefits of Using Donor Wiring Harnesses

Using wiring harnesses from donor vehicles offers several significant advantages over purchasing new components:

• Cost Savings: Used harnesses can save 50% to 80% compared to new OEM equivalents
• OEM Quality: Factory harnesses often feature superior wire quality, insulation, and connections compared to aftermarket alternatives
• Preservation of Original Functions: Maintaining all intended vehicle features without extensive custom fabrication
• Availability: Essential for older or rare vehicles where new parts are no longer manufactured
• Reliability: Fewer connection points mean fewer potential failure points

“If you can wire a car like this a daily driver or or a hot rod using stock componentry with that sort of harness, you’re head of the game. The quality of the wire, the quality of the insulation, the quality of all the connections.”

Critical Compatibility Factors

Connector Matching Requirements

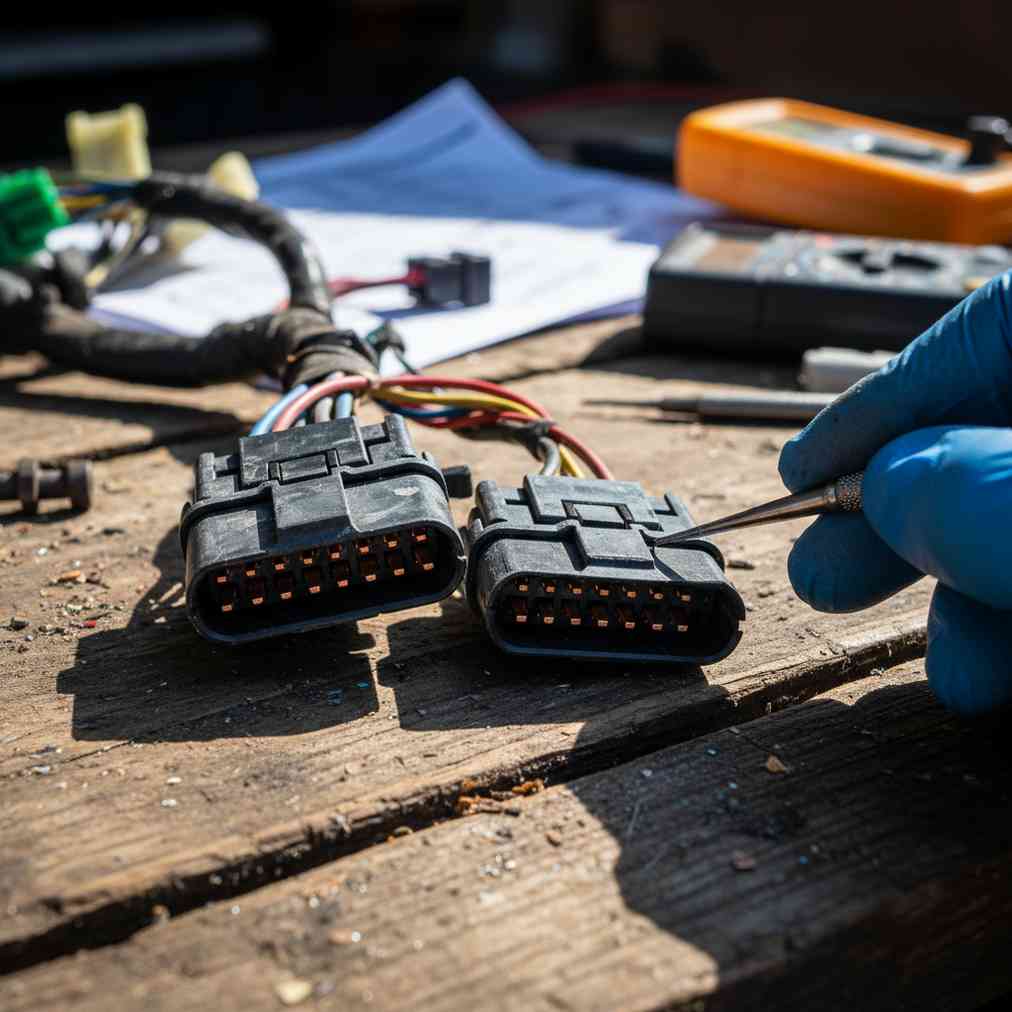

For a plug-and-play experience, connectors on the donor harness must physically mate with corresponding components in the target vehicle. This includes ECUs, sensors, switches, and other electrical components. High-quality OEM connectors typically feature secure locks and strain relief to prevent loosening during operation.

Pinout Verification Process

The function assigned to each wire and pin must be identical between donor and target systems. A wire designated as a “sensor signal” in the donor system might serve as “ground” or “power” in the target vehicle, potentially causing immediate failure or damage if not properly verified through detailed wiring diagrams.

Compatibility Factor	Verification Method	Importance Level
Physical Connector Match	Side-by-side comparison	Critical
Pinout Alignment	Wiring diagram analysis	Critical
Wire Gauge Compatibility	Multimeter testing	High
Length and Routing	Physical measurement	Medium
Feature Support	Component inventory	Medium

Comprehensive Donor Harness Inspection Checklist

Pre-Purchase Evaluation

Before purchasing a used wiring harness, conduct a thorough inspection to ensure its integrity and compatibility:

Inspection Area	What to Check	Red Flags
Visual Integrity	Wire insulation condition	Cracking, cuts, abrasion, fraying
Heat Damage	Signs of overheating	Melted, burnt, or discolored sections
Physical Damage	Harness webbing and sheathing	Punctures, nicks, excessive wear
Connector Condition	All connector faces	Corrosion, dirt, moisture ingress
Pin Security	Pin alignment and seating	Bent, loose, or missing pins
Labeling	Identification markers	Illegible or missing labels

Compatibility Verification Steps

• Donor Vehicle Match: Verify exact year, model, engine, and transmission combination
• Feature Documentation: Catalog all features present in donor harness (cruise control, sensors, etc.)
• Connector Part Numbers: Cross-reference stamped part numbers with target vehicle requirements
• Pinout Documentation: Obtain factory service manuals for both donor and target vehicles
• ECU Compatibility: Confirm harness supports target vehicle’s engine management system

Modern Trends in Harness Selection

Harness Thinning and Customization

A significant trend in custom builds involves harness thinning—taking a complete donor harness and professionally removing all non-essential circuits. This process often involves flashing the ECU to disable features no longer present, such as emissions controls or ABS systems.

“If you don’t mind doing a little modifying, grab a junction box from a later model car in a junkyard and make it suit your needs. You could pull all of the wiring harnesses from a donor vehicle and shorten/lengthen them to fit your needs and would be a lot more economical than buying a bunch of new wire.”

Connector Standards and Quality

Modern automotive systems rely increasingly on high-quality connectors with specific ratings. These include IP ratings for sealing protection and current/voltage ratings that must be matched for reliability, especially when dealing with high-speed data systems.

Expert Installation Strategies

Direct-Fit vs. Custom Adaptation

When working with donor harnesses, you’ll encounter two primary scenarios:

• Direct-Fit Applications: OEM replacements or close upgrades designed to plug in without modifications
• Custom Adaptation: Harnesses requiring splicing or adapter patch harnesses for mismatched connectors

Factory wiring diagrams and pinout charts serve as critical tools for confirming compatibility and verifying circuit functions before installation. Engine swap communities often provide valuable resources for specific applications.

Cost vs. Time Considerations

As experts note, “It’s a choice between time and money” when deciding how much to modify a donor harness. Retaining features like power steering or ABS requires more complex wiring but preserves vehicle functionality. Choosing the right donor vehicle initially can significantly reduce modification requirements.

Common Pitfalls and Solutions

Electrical Mismatch Prevention

The most critical aspect of donor harness selection involves preventing electrical mismatches. These occur when:

• Pin assignments differ between donor and target systems
• Voltage levels don’t match between components
• Ground paths differ between vehicle architectures
• Communication protocols vary between ECU generations

Testing and Verification Procedures

Before final installation, conduct these essential tests:

• Continuity Testing: Use a multimeter to verify end-to-end circuit integrity
• Resistance Checks: Ensure ground paths meet specifications
• Voltage Verification: Confirm power distribution matches requirements
• Function Testing: Verify sensors and actuators operate correctly

Special Considerations for Engine Swaps

Engine swaps present unique challenges when selecting donor harnesses. Wiring an engine swap requires careful attention to:

• Firewall Modifications: Bulkhead connectors may require adaptation or replacement
• Length Adjustments: Harness routing may need modification for different engine bay layouts
• Control Module Integration: ECU placement and communication requirements
• Sensor Compatibility: Ensuring all engine sensors integrate properly with vehicle systems

Best Practices for Long-Term Reliability

Professional Documentation

Successful donor harness integration requires meticulous documentation. Create detailed records of:

• Original donor vehicle information and mileage
• Modification details and wire routing changes
• Connector adaptations and splice locations
• Circuit testing results and verification data

Quality Assurance Measures

To ensure long-term reliability, implement these quality measures:

Quality Measure	Implementation	Benefit
Proper Splicing Techniques	Solder and heat shrink connections	Prevents corrosion and failure
Secure Routing	Use factory mounting points and clips	Prevents chafing and damage
Environmental Protection	Ensure proper sealing and drainage	Prevents moisture-related issues
Load Testing	Verify all circuits under operating conditions	Identifies potential problems early

Final Installation Guidelines

When you’re ready to sell your old vehicle for parts or need cash for junk cars to fund your project, proper harness installation ensures your investment pays off. Follow these final guidelines:

• Systematic Approach: Install and test circuits in logical groups rather than all at once
• Backup Plans: Keep original wiring diagrams and modification notes accessible
• Professional Consultation: Don’t hesitate to consult with experienced builders for complex integrations
• Safety First: Always disconnect battery power when making connections or modifications

Successfully choosing and installing compatible wiring harnesses from donor cars requires patience, attention to detail, and thorough preparation. By following these comprehensive guidelines and leveraging the cost savings and quality benefits of used OEM harnesses, you can achieve reliable, professional results in your automotive projects while avoiding the common pitfalls that lead to electrical problems and expensive repairs.
